1. Servo Brand: Inovance(汇川)
2. Expanding speed: 1m-28m/ min
3. Gantry balance hanging type, elastic nozzle, forced clamping
4. Servo motor drives gears, pushing four rods at speed up to 30m/min without workload.
5. Speed under workload on different tubes:
Aluminium tubes: 8 meter/ min
Stainless tubes: 5meter /min
Copper tubes: 15meter/ min
6. Pedal type clamping ensures a smooth and firm expanding
7. Clamping is controlled by pneumatic controls.
8. Precision is guaranteed by digital control system, which features three modes: Full
auto, semi-auto, and hold-to-release modes.

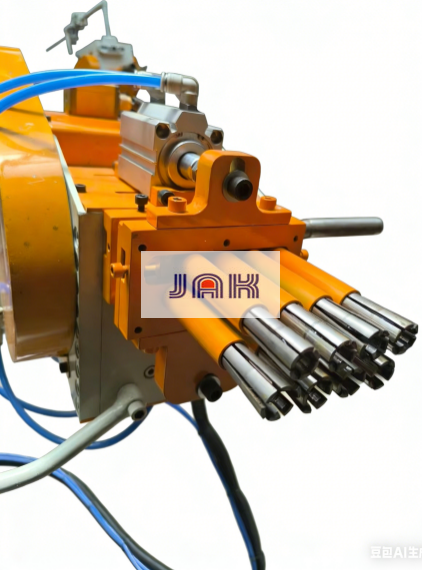

9. The machine consists of a 2-meter long gantry, expander main machine, balancer,
electrical control system,pneumatic system and clamping tools.
