H-type fin press machine

JAK H type fin press machine design for middle and large fin dies.
INQUIRY


H type fin press machine main Structure Features::
1.Compositions :Uncoiler ,oil tank ,air Feeder ,close-type one-point or duble-point high-speed precision power press,sucker &collector, electric control system ,air route system ,hydraulic system.
2.The fin press machine slide has hydro-lifting function which will be convinent for dies installation commissioning.
3.Fin press speed &vacuum stucker is controlled by converter.
4.Fin press line fin collector has protecting system for fault operation ,material shortage warning ,oil shortage warning.
5.Hydraulic overload protection for fin press.
6.The fin press line equipped with hydraulic rapid-dies changing device ,making fin dies change more quickly and convenient.

7.Machine-human interface and PLC electrical control system ensuring the reliable operation of the automatic stamping.

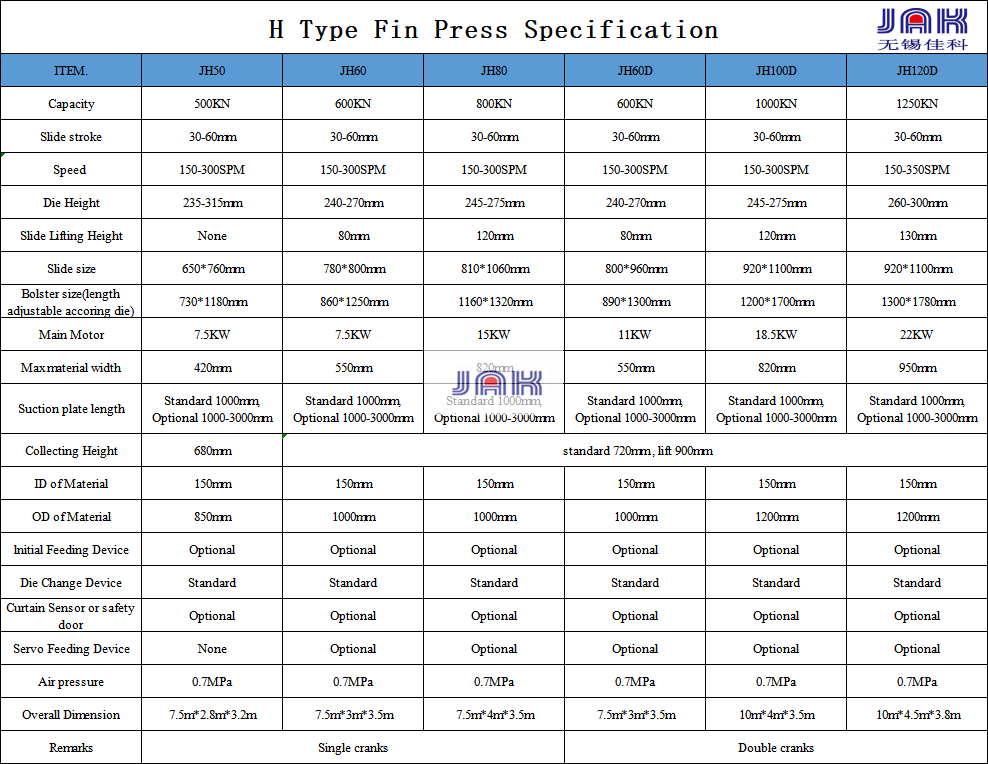

8.  JAK H type fin press has 45,60,80,100TON options for middle and large fin dies.
9.  Fin press speed with fin die: 150-300SPM
